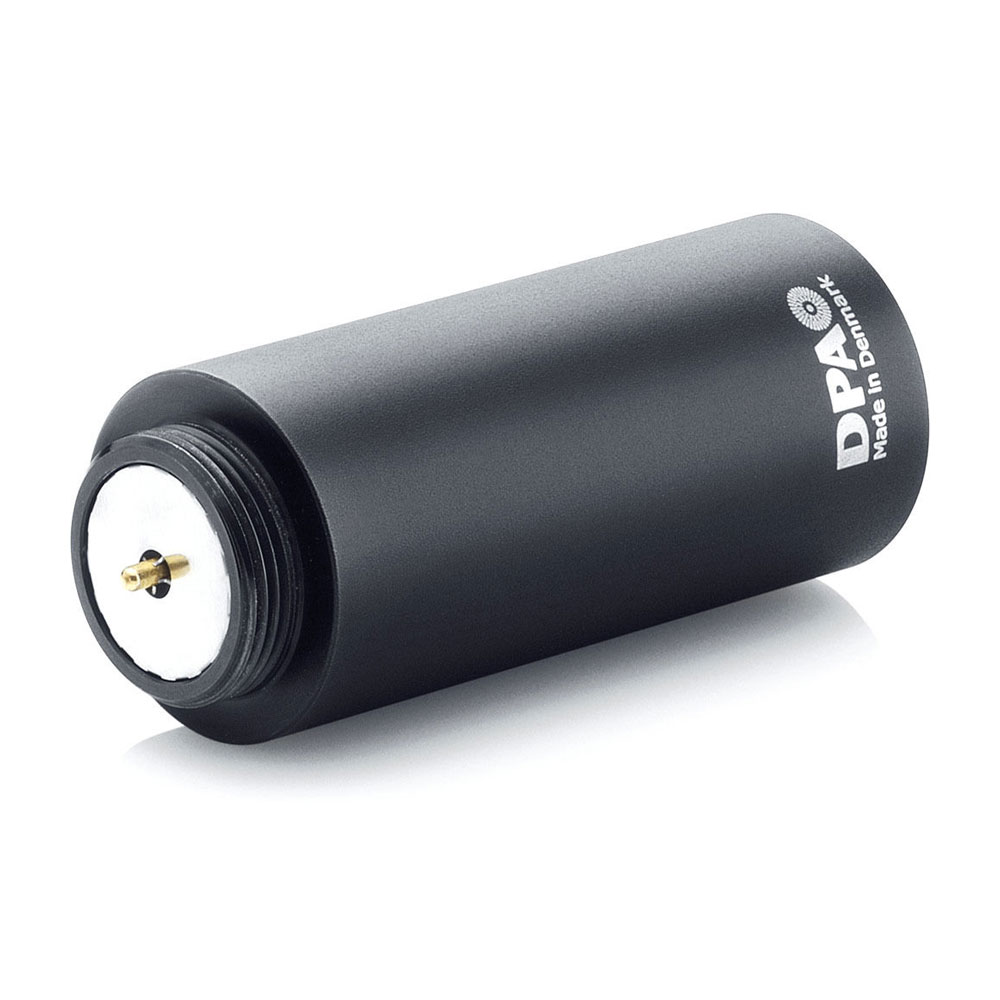

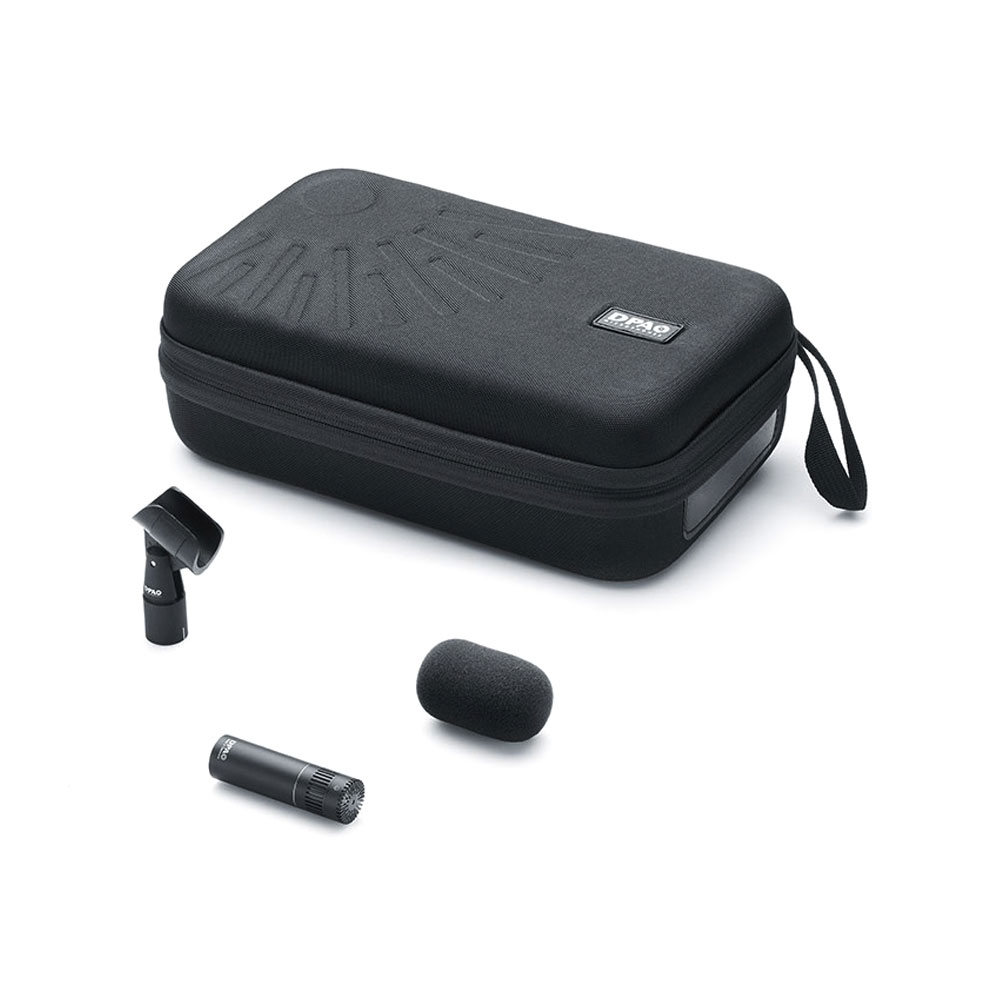

1 x 4018C w/ Compact Preamp

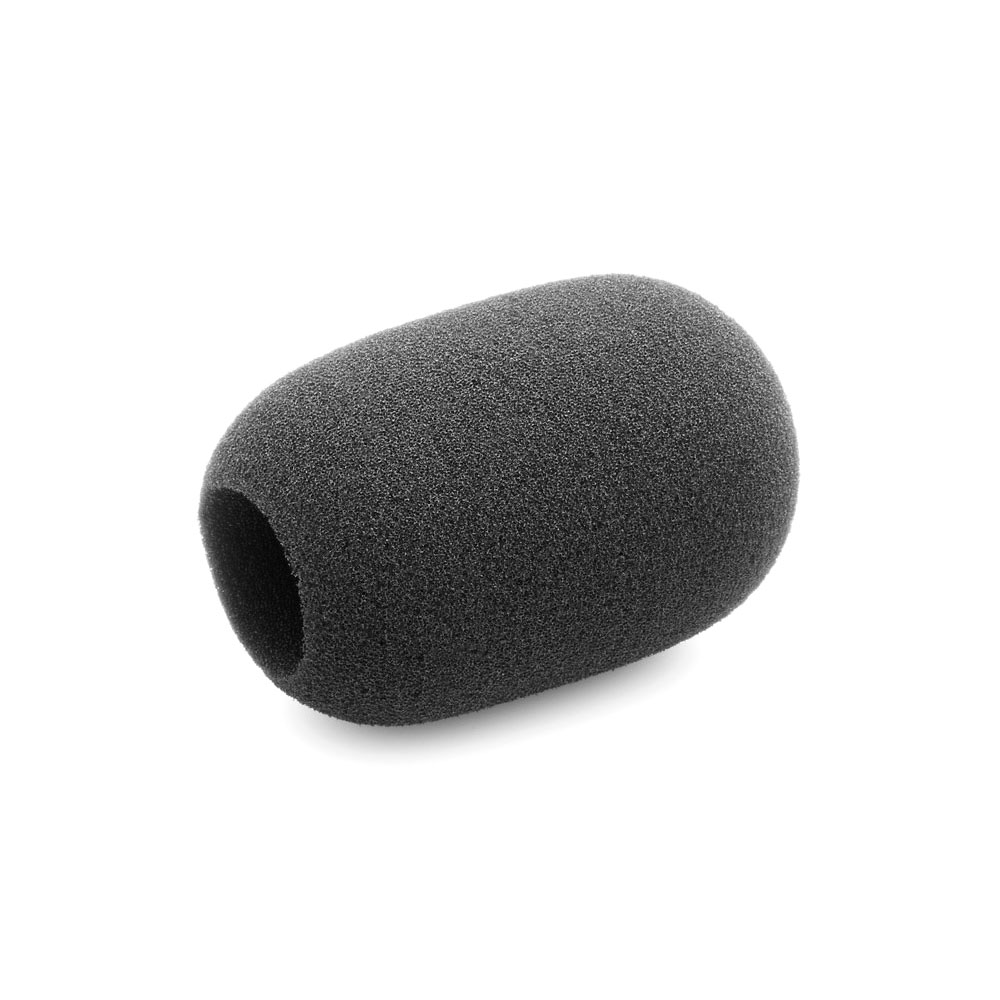

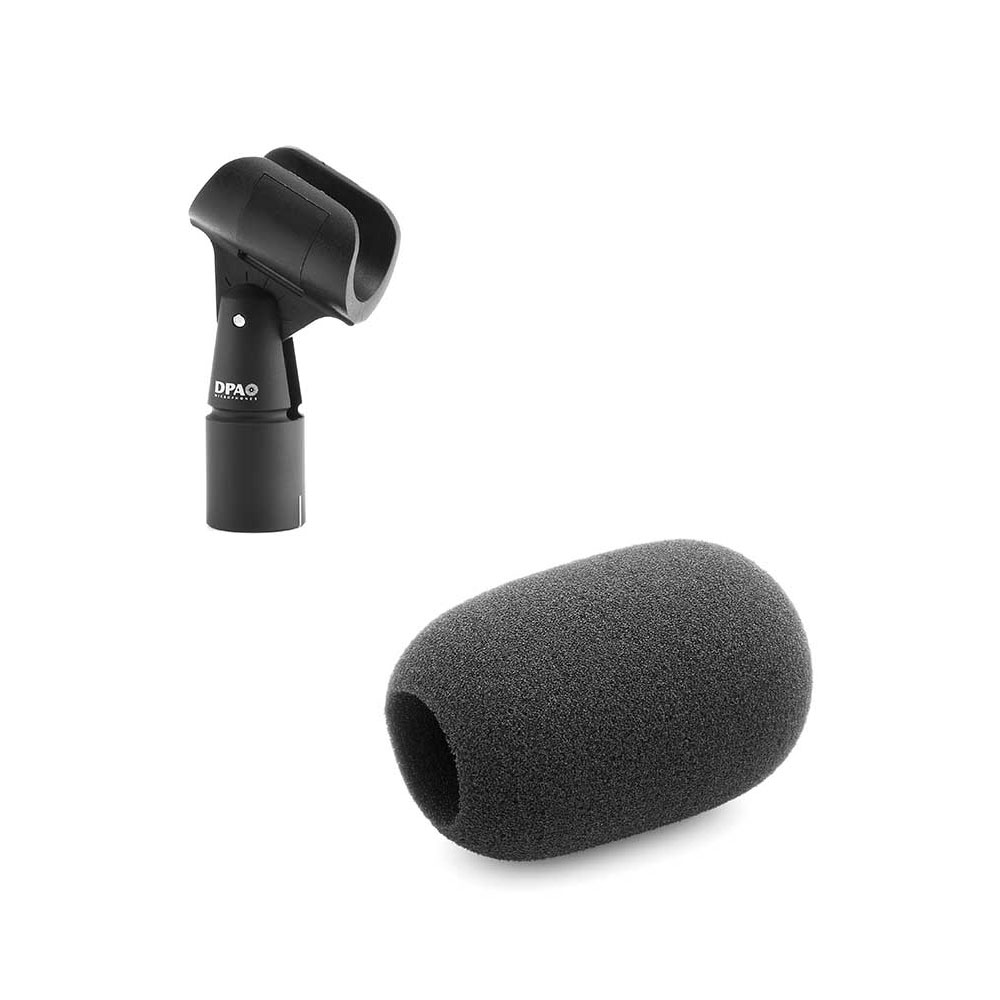

1 x Foam Windscreen
1 x Microphone clip
1 x Hardshell zipper case

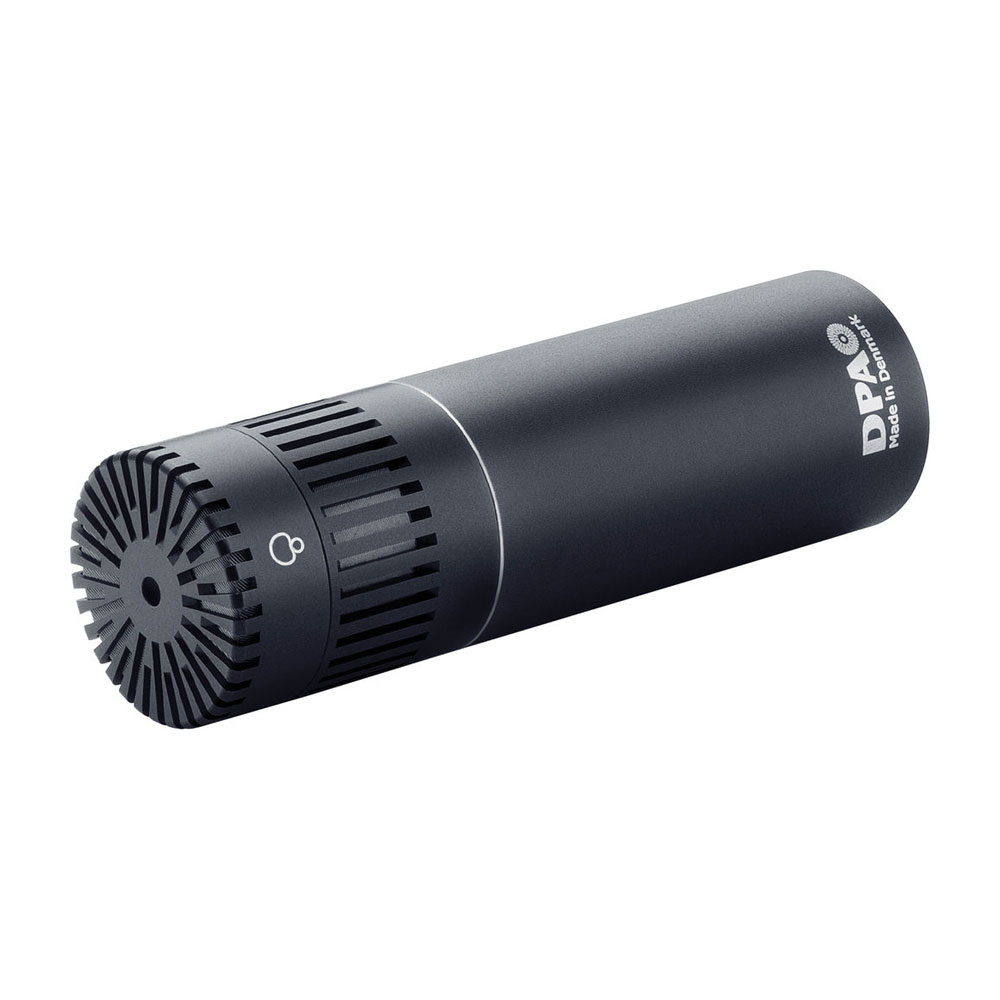

DPA 4018C Compact Supercardioid Microphone
The 4018C is a compact supercardioid booming microphone and is part of the modular DPA d:dicate Recording Microphones series.
- Highly directional Compact Supercardioid
- Uniform directionality
- Low noise and high sensitivity for distant positioning
- Very sleek and compact boom, table or spot mic
- Low noise and high sensitivity
- Highly directional for high isolation
- Most controlled supercardioid shape
- Uniform, frequency independent directionality
- Modular flexibility
At the length of only 6,4 cm (2,5 in), the 4018C has a highly directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018C making it much more isolated without sudden frequency dependent peaks and dips.
Designed for a broad range of broadcast/ENG/film long-distance miking applications, such as booming, dialogue, interview and table or podium use, the 4018C offers superbly flexibility through modular accessories. The 4018C is also ideal for use as spot or hanging mic for orchestra recording situations.
|Directional pattern ||Supercardioid |
|Principle of operation ||Pressure gradient |
|Cartridge type ||Pre-polarised condenser |
|Frequency response ||20 Hz - 20 kHz |
|Effective frequency range, ±2 dB, at 60 cm (23.6 in) ||40 Hz - 18 kHz |
|Sensitivity, nominal, ±2 dB at 1 kHz ||12 mV/Pa; -38.4 dB re. 1 V/Pa |
|Equivalent noise level, A-weighted ||Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A)) |
|Equivalent noise level, ITU-R BS.468-4 ||Typ. 23 dB |
|Distortion, THD < 1% ||134 dB SPL RMS, 137 dB SPL peak |
|Dynamic range ||Typ. 121 dB |
|Max. SPL, THD 10% ||150 dB SPL peak |
|Rated output impedance ||100 Ω |
|Minimum load impedance ||2 kΩ |
|Cable drive capability ||100 m (328 ft) |
|Output balance principle ||Impedance balancing with Active Drive |
|Common mode rejection ratio (CMRR) ||> 50 dB |
|Power supply (for full performance) ||P48 (Phantom Power) |
|Current consumption ||2.8 mA |
|Connector ||XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
|Colour ||Matte black |
|Weight ||58 g (2 oz) |
|Microphone diameter ||19 mm (0.75 in) |
|Capsule diameter ||19 mm (0.75 in) |
|Microphone length ||64 mm (2.5 in) |
|Maximum output voltage, RMS ||24.5 V |
|Polarity ||+V at pin 2 for positive sound pressure |
|Temperature range ||-40°C to 45°C (-40°F to 113°F) |
|Relative humidity (RH) ||Up to 90% |
|Matching tolerance (frequency response and sensitivity) ||±1 dB |
|Phase deviation for kit ||< 10° |

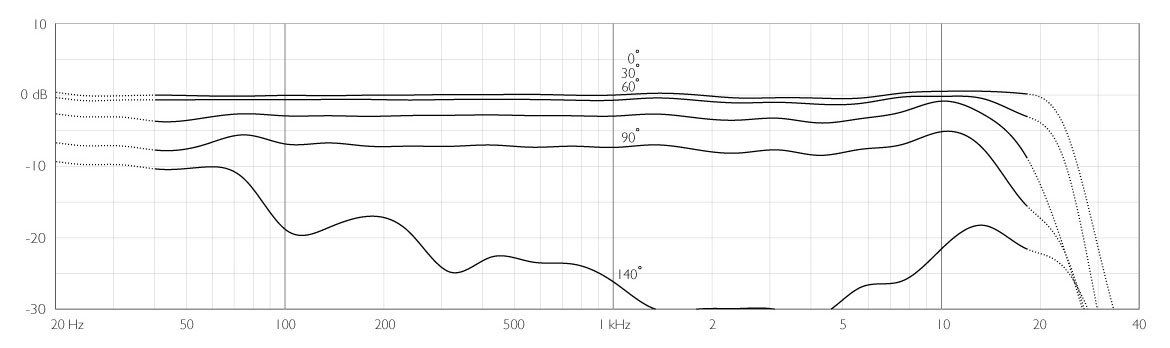

Typical on and off-axis response of a 4018C Supercardioid Microphone measured at 30 cm (11.8 in)

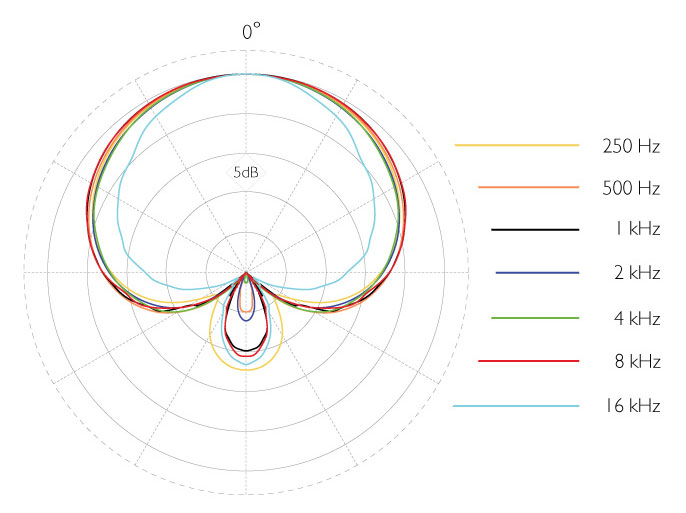

Typical directional characteristics of a 4018C Supercardioid Microphone
We have an extensive inventory of audio equipment for hire with competitive rates ready at a moment's notice. We pay the most meticulous attention to detail in our hire prep so you can travel to shoots with the peace of mind that you have everything you need.
For weekly rental, you can pick up your gear the day before your production shoot after 3:00pm, and return by 10:00am after your shoot day. In the case of 7 day rental, you will only be charged for 4 billing days.
If shipping is required, we require a two day minimum hire period, with a travel day inbetween.
Orders can be cancelled for free up to 24 hours before pick up date, any notice within 24 hours of the pick up date will be charged a prep fee of 25% of the total amount.
Customers will provide a certificate of insurance listing Everything Audio as "loss payee" and "additional insured".
Please provide your contact telephone number.
Please provide the name and model of the product(s) you are enquiring about hiring.
What is the date range that you are looking to hire this/these product(s) for?
Please add the two numbers
